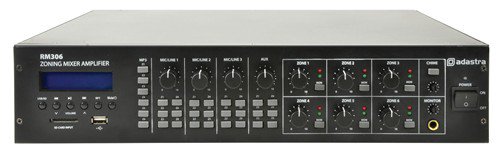

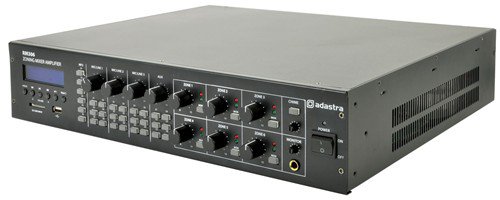

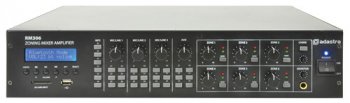

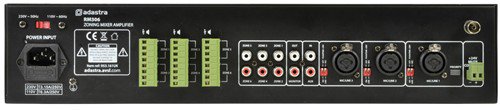

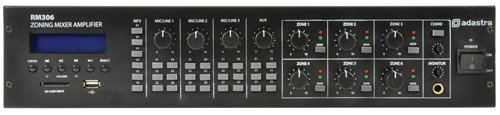

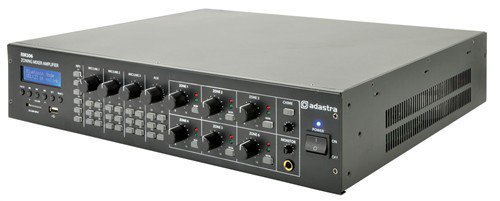

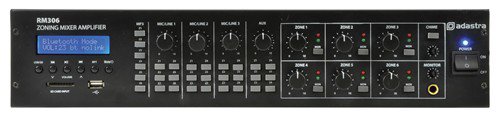

Adastra RM306 6-zónový zesilovač + USB/SD/FM/BT

Zone amplifier with 6 x 30W output to 100V or 4/8 Ohms speakers, which can be monitored via a headphone output. 3 mic/line inputs, 1 aux input and an integral USB/SD/FM player and Bluetooth™ receiver can be matrix switched to any of the 6 zones independently. Mic 1 channel has a variable override and each microphone input has switchable phantom power. A master chime with volume can be used for paging calls and alerts. Designed for multi-room systems requiring different audio sources. Integral USB/SD/FM audio player. Internal Bluetooth™ receiver. 100V or 4/8 Ohms operation. 6 independent output zones. 3 mic/line and 1 auxiliary input. Mic priority and chime functions. Switchable +30V phantom power. 24V mute contacts. Monitor headphones output.

Technická data

Power supply: 110-230Vac, 50/60Hz (IEC)
Output power: 6 x 30W rms
Audio source: USB/SD/FM/BT audio player
Inputs: 3 x mic/line (XLR/jack), auxiliary 2 x RCA
Zone outputs: line6 x RCA
Zone outputs: speaker6 x terminal outputs 100V/8 Ohms/4 Ohms/com
Phantom power: +20V switchable to each XLR
Monitor outputs: 6.3mm stereo phones, 2 x RCA line
Mute: +24V relay contacts
THD: <0.76% / 1kHz
Input impedance: 1k Ohms (mic/line)
SNR: 84dB (line), 82dB (mic)
Bluetooth version: 2.0
Input sensitivity: -11dB (line), -46dB (mic)
Frequency response: 100 Hz - 24 kHz
Dimensions: 433 x 89 x 403 mm
Weight: 13,5 kg
